The story in plain words

Three walking robots, each with its own job, explored Moon-like and Mars-like terrain on Earth together — a sign that robots on legs could one day study the steep, loose places that wheeled rovers must avoid.

  1. Why this matters

    Countries and companies are heading back to the Moon. Many places scientists most want to study (fresh craters, pits that may lead into caves, old volcanic channels, dark craters near the south pole that may hold ice) are on steep, loose, rocky ground.

  2. What makes it hard

    Every Moon and Mars rover so far rolls on wheels. On loose, steep soil, wheels spin and dig in, like a car stuck in beach sand: Spirit was lost in soft Martian soil. So missions keep to flat ground. And one rover carries one set of tools, moves slowly, and hears from Earth only seconds later.

  3. What people did before

    Walking robots on Earth already cross mud, snow and sand, and this lab had shown legs climbing steep Mars-like soil, but only walking, no science. Robot teams won DARPA’s underground challenge, but they differed in how they moved, not in what they could measure. Planetary robot teams tested on Earth mostly relied on wheels, or tried skills one at a time instead of in a full mission.

  4. What this paper does

    It sends a team of three four-legged robots and splits the work like a field geologist: a Scout that looks around and maps, a Hybrid that measures rocks from a distance, and a Scientist with an arm for close-up study. People at mission control click a target; the robot does the rest on its own. Instruments overlap, so a teammate can step in when something breaks.

  5. What they showed

    In full practice missions with a 5-second message delay, like talking to the Moon: at ESA’s Space Resources Challenge the team mapped 95 % of an unknown mock-Moon site, found 7 of 8 boulders and measured a rock every 3–5 minutes. At a quarry, two instruments broke and the team still met 6 of 7 goals. A robot walked up a 25° slope of Mars-like sand; rovers are rated for about 17–20°. No robot ever fell.

  6. Why it’s a step forward

    Legs plus teamwork turn steep craters and loose slopes into places a mission can plan to visit. What is still missing: people choose and assign every task, and the computers and laser scanners on board are not built for space yet.

Words used below
Analog site
a place on Earth that resembles the Moon or Mars, used for practice missions
Rover
a wheeled robot vehicle driving on another world
LiDAR
a laser scanner that measures distances to build a 3-D picture
Raman spectrometer
shines a laser on a rock and tells its minerals from the scattered light
In-situ
“on the spot”: measuring a rock up close, in place
Round-trip delay
time for a command to arrive and the reply to come back
1 / 8
Scout Hybrid Scientist
Scene 1

Read the full section with the paper’s figures ↓

The paper, section by section

Everything the animation skips

Each section matches one scene above. Press “Watch scene” to jump back to its animation; click any figure to enlarge it. Figures are from the paper; the text is a plain-language walkthrough.

Scene 1

Why go there?

In short: the places on the Moon that scientists most want to study are steep, loose and rocky, which is exactly where wheeled rovers can’t safely drive.

Robots are how we explore the solar system, and increasingly how we look for resources there. Space agencies and companies have committed to returning to the Moon, this time aiming for a lasting human presence. NASA’s Artemis program is headed for the lunar south pole, and one of its first missions, the VIPER rover, was planned to visit permanently shadowed regions: cold hollows that have not seen sunlight for millions of years and are thought to be rich in ice and other volatiles.

Many of the most valuable targets sit in hard places: volcanic vents and channels (rilles), caves, unusual “irregular patches” in the dark lava plains, and fresh impact craters. The south-polar terrain around them has steep slopes, fields of boulders thrown out by impacts, and soil that may behave in unexpected ways.

Animated (illustrative terrain). Green is everything a robot can reach from the start without ever climbing a slope steeper than the gauge. Between 20° (what rovers are rated for) and 25° (the steepest slope the paper tested legs on), the crater and the channel open up; the pit and the dark crater stay out of reach. The 20° and 25° marks are from the paper; the terrain is made up.

Wheels are the bottleneck

Every rover that has driven on the Moon or Mars, from Lunokhod 1 in 1970 to Perseverance, rolls on wheels. Wheels are well proven on fairly flat ground but reach their limits on steep slopes, loose granular soil and rough, blocky terrain. On Mars, Spirit was lost in unusually loose soil and Opportunity was temporarily stuck in a dune. On the Moon, the Apollo 15 astronauts had to lift their rover out of loose soil by hand, and Lunokhod 2’s wheels sank more than 20 cm near Le Monnier crater. The team behind China’s Yutu-2 rover said craters would be of great scientific interest, but they don’t drive into them because the risk of getting stuck is too high. In the paper’s words, this limitation keeps current missions away from high-priority targets.

There is a second limit: a single robot carries a single set of instruments and explores at a single robot’s pace. And on the Moon, every command and every reply takes seconds to travel.

A real-world test: the Space Resources Challenge

The European Space Agency (ESA) and the European Space Resources Innovation Centre (ESRIC) set up the Space Resources Challenge in 2021 to push lunar prospecting robots forward. Teams had to search an unknown Moon-like site for resource-enriched areas: spots with minerals such as ilmenite, rutile and titanium dioxide that could be used on the Moon itself (in-situ resource utilization). The conditions copied the lunar south pole: unknown terrain, loose soil, a low sun casting long, harsh shadows, a 5.0 s round-trip delay on every message, and moments when the link dropped out completely. The challenge inspired this work and was one of its two big field tests.

What existed before

  • Legged robots on Earth already walk robustly over mud, gravel, snow, vegetation and sand, using controllers learned in simulation.
  • Legged robots for space, including this lab’s own, had shown dynamic walking on steep planetary soil and in low gravity. But to be useful they must do more than walk: carry instruments, measure, take samples. At the first round of the Space Resources Challenge the authors used a single legged robot with instruments fixed to its body.
  • Robot teams. All top teams in the DARPA Subterranean Challenge (2021) used mixed robot teams, including the lab’s team CERBERUS, which this work builds on. Those teams differed in how they moved, not in what they could measure, and had no instruments to place or long delays to cope with.
  • Planetary robot teams have been tested on Earth: the German Aerospace Center (DLR) sent a drone and two wheeled rovers onto Mount Etna with a high level of autonomy, but wheels limited where they could go; DFKI paired a wheeled and a legged robot to collect samples; another team ran a remote-controlled sample-return test, but checked skills like sampling separately rather than in a full mission. NASA JPL has sent several Spot robots into Mars-like caves (not yet published in detail). On Mars itself, the Ingenuity helicopter scouts for the Perseverance rover.

Where this paper fits: a team of legged robots that differ in their science skills, tested end to end in realistic missions with a long delay, on terrain where wheels struggle.

Scene 2

Why send walking robots?

In short: on loose, steep soil wheels slip and dig in. The authors checked that a walking robot doesn’t, up to the 25° limit of a tilting Mars-sand test rig.

Why would legs do better? A wheel has to roll through whatever is under it. On loose sand it spins, digs a rut and can sink until the vehicle is stuck.

A walking robot instead places each foot and pushes off, so a slipping foot does not turn into a rut that swallows the vehicle. To test this, the authors took the Scout and its existing learned walking controller (a neural network trained by trial and error in simulation; Miki et al., 2022) to the ExoMars rover testbed at Beyond Gravity: a 6 m × 6 m box of ESA’s ES-4 Mars soil simulant that tilts up to 25° in 0.1° steps.

Animated. As the plate tilts, each rover passes its rated slope from Table S3; ANYmal walked at the testbed’s 25° maximum on both sand and bedrock.
  • Up and down the 25° maximum on ES-4 soil and on limestone “bedrock”, three runs each, with no fall and no stall.
  • Top speed on the 25° slope: 0.7 m/s.
  • At 10°, it crossed very loose hills with deep foot sinkage and high steps between soil and bedrock.
  • In the field missions it climbed granular slopes of up to 20° and a crater rim, and walked 358 m of granular terrain at the Space Resources Challenge. There was no locomotion failure on any robot in any test or mission.
VehicleMax speed on flat (mm/s)Rated slope
Spirit and Opportunity5017°
Curiosity / Perseverance44 / 44.7n/a
Yutu-25620°
Zhurong5630° rigid · 20° soft
SpaceBok (legged prototype)1000≥ 25° granular
ANYmal, this paper’s controller1900≥ 25° granular

What this means: the legged robot is roughly 30–40× faster than today’s planetary rovers on flat ground and handles steeper loose slopes; 25° was simply the limit of the test rig, not of the robot.

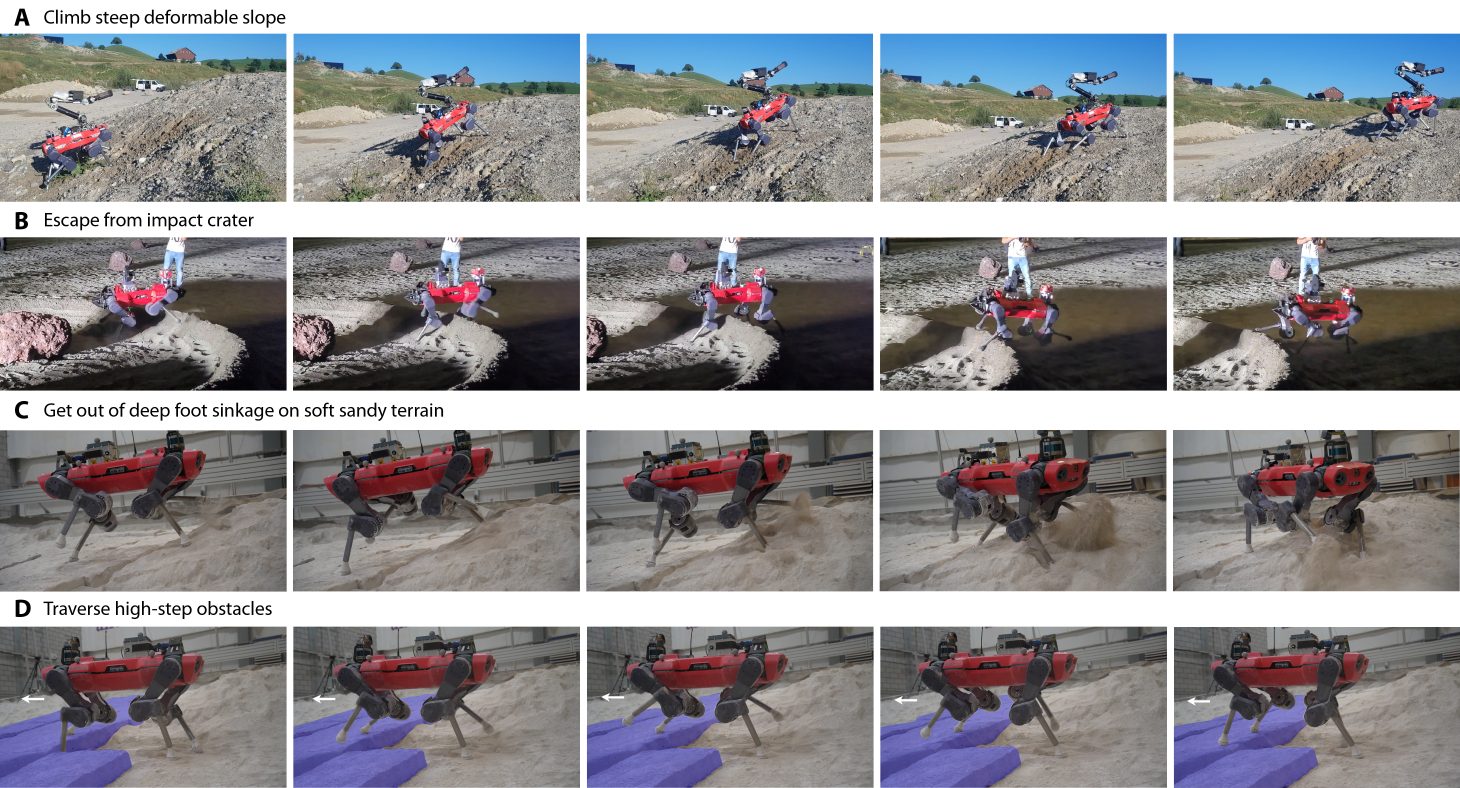

Paper Fig. 5. Four hard cases from the field and the testbed: a ~20° sandy slope at the quarry (with the arm), climbing out of a crater at the SRC, pulling feet out of deep sinkage, and stepping up a high bedrock ledge.

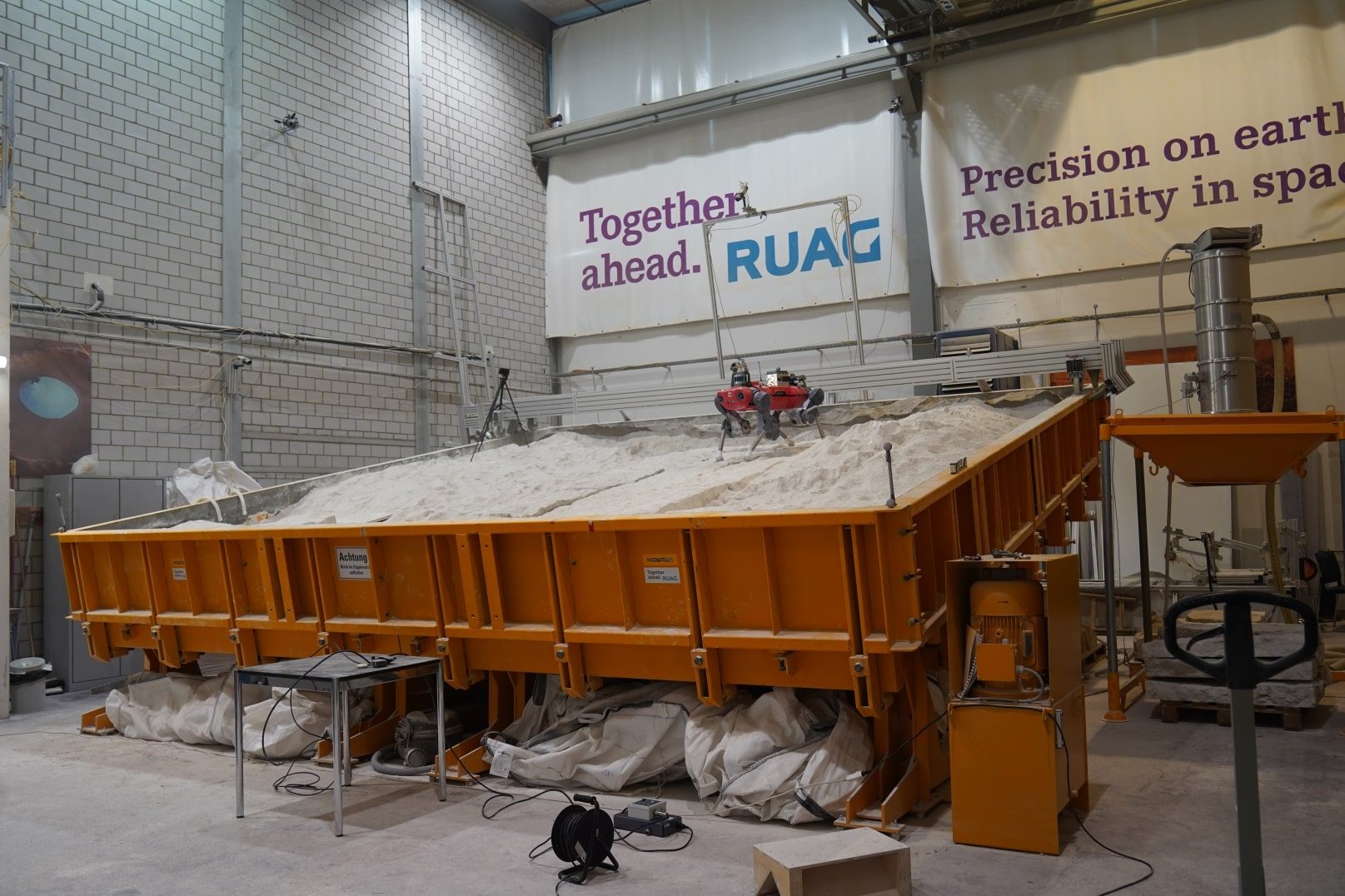

Paper Fig. S2. The Beyond Gravity (former RUAG Space) testbed, built to test the Rosalind Franklin rover’s wheels. Filled with ES-4 Mars soil simulant and tilted to 25°.
Scene 3

A team with three roles

In short: instead of one robot that does everything, three robots split the work the way a field geologist does: look around, look closer, then study a few rocks in detail.

All three robots are ANYmal quadrupeds from ANYbotics: 50 kg, 15 kg payload, about 90 minutes of continuous walking. The Scout is an ANYmal C (2019); the Hybrid and the Scientist are ANYmal D (2021). They share the walking, mapping, localization and navigation software, and differ in what they carry. The split follows how a field geologist works: first get an overview, then look at many candidates from a distance, then study a few in detail.

RobotJobScience payloads
ScoutExplore fast, map, find targetsCTX-FW: pan-tilt 10× zoom camera with a custom filter wheel (390, 470, 530, 620, 940 nm). Extra: two Bpearl LiDARs (laser scanners that measure distance) and an Alphasense 7-camera array for mapping.
HybridRemote measurements on many targetsCTX-TH: 20× zoom + thermal camera on pan-tilt. MIRA Raman spectrometer (a laser that identifies minerals from the light a rock scatters back) on the base, autofocus up to 2 m.
ScientistClose-up, in-depth analysisDynaArm (6-DoF, 10 kg incl. 2.3 kg instruments, 0.9 m reach) with MIRA on the forearm and the custom MICRO microscope (UV to NIR) on the wrist.

What this means: the instruments get closer to the rock as you go down the team: images from metres away, Raman spectra from 2 m or 0.7 m, and microscope images in contact.

Animated. Each instrument’s working distance to the target, on a compressed distance axis.

Two terms recur below. Remote measurement tasks are images from the CTX cameras, aimed at a 3-D point. In-situ measurement tasks are MIRA and MICRO readings, which need a full 6-D instrument pose (position and orientation) on the target.

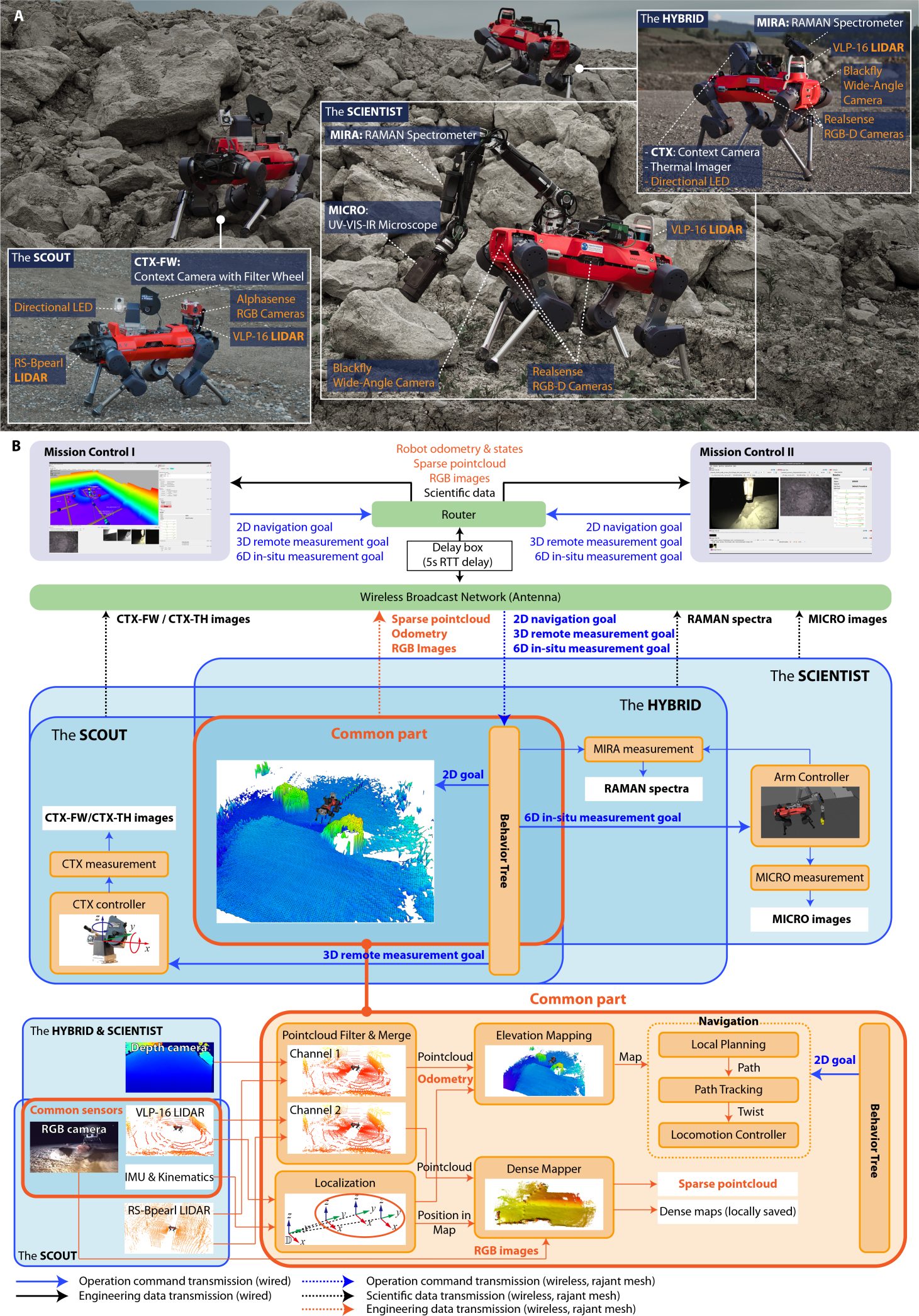

Paper Fig. 1. Top: the Scout, Scientist and Hybrid with their robotic (orange) and science (white) payloads. Bottom: the software. A common core (point-cloud filtering, localization, elevation and dense mapping, local planning, the locomotion controller and a behavior tree) runs on every robot; the CTX, MIRA and arm modules are added per robot. Two mission-control stations talk to all robots through a 5 s delay box.

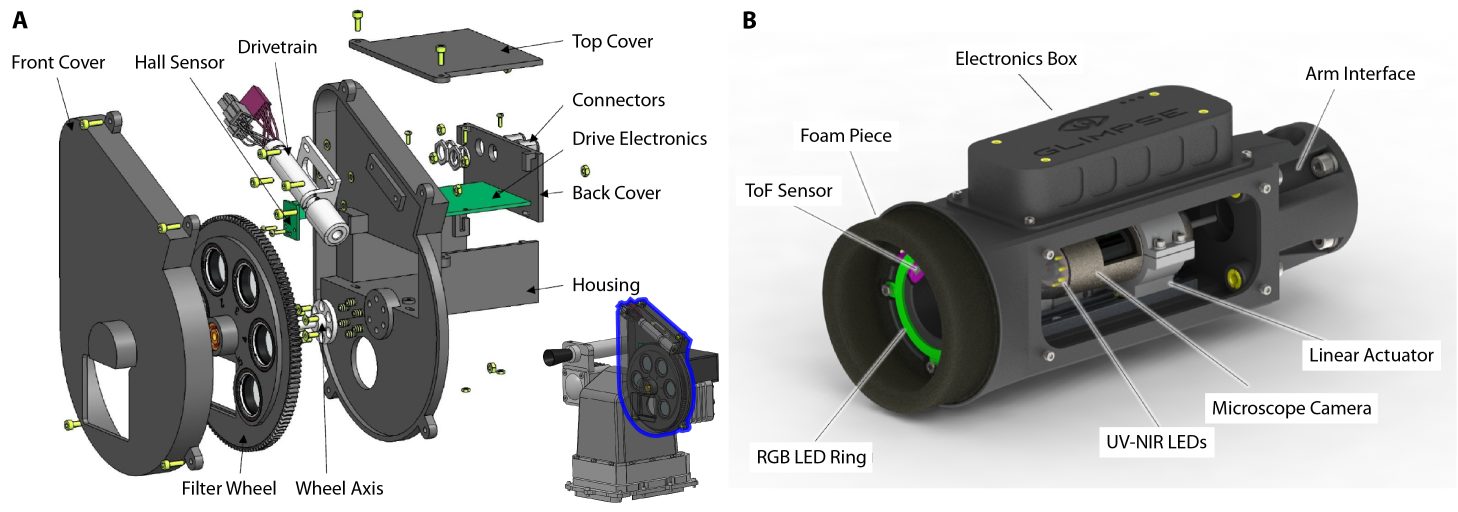

Paper Fig. S1. The two instruments the team built: the filter wheel for the Scout’s zoom camera, and MICRO, a USB microscope on a linear actuator with an LED ring, a time-of-flight distance sensor and a foam ring that seals out stray light.
Scene 4

Mapping over a slow, lossy link

In short: messages to the robots arrive seconds late, so the system sends small maps and gives goals (“go there”, “photograph that”) instead of steering the robots.

Lunar operations have a round-trip delay of seconds, and the link can drop out. Both missions simulated this with a delay box that held every packet for a 5.0 s round trip. That rules out joystick driving and streaming big maps, so the system is built around two ideas: send little data, and send goals instead of commands.

Two maps: one to steer by, one to keep

  • Localization: LiDAR SLAM (simultaneous localization and mapping: building the map and finding yourself in it at the same time; a modified CompSLAM) with inertial data as a prior; when the terrain gives the LiDAR too little structure in some direction, it falls back on the prior in that direction.
  • Dense map, kept on the robot: an octree (a 3-D grid that only stores occupied space) with 30 mm voxels (3-D pixels), filtered (points above 2 m clipped, points with fewer than five neighbours within 200 mm removed, points on other robots removed) and coloured from the navigation cameras. It is fetched after the mission and turned into a Poisson mesh (depth 12, up to five minutes on an i9 desktop).
  • Light mesh, sent during the mission: the robot downsamples to 150 mm voxels within 9 m, compresses with Draco (3 MB → 250 kB), and sends only when there is something new. Mission control meshes it (Poisson, depth 8, at most 0.25 Hz), drops weakly supported triangles and fuses the patch into the map.
  • Elevation map for walking: an 8 m × 8 m, 40 mm grid around each robot, updated on the GPU, feeds the local planner.

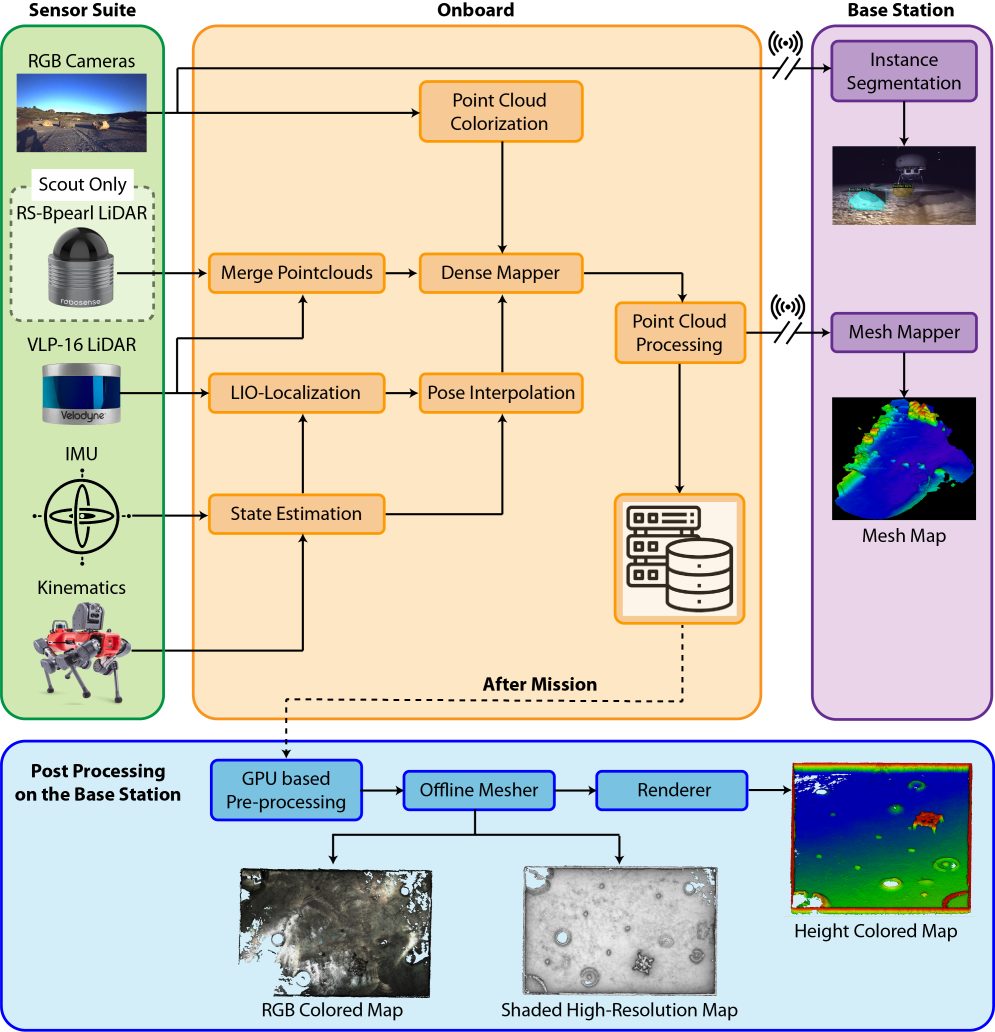

Paper Fig. 6. From sensors (left) through onboard localization and dense mapping (middle) to the base station (right), where the mesh map is built and boulders are segmented. The blue box is the post-mission step that produces the high-resolution shaded, height-coloured and RGB maps.

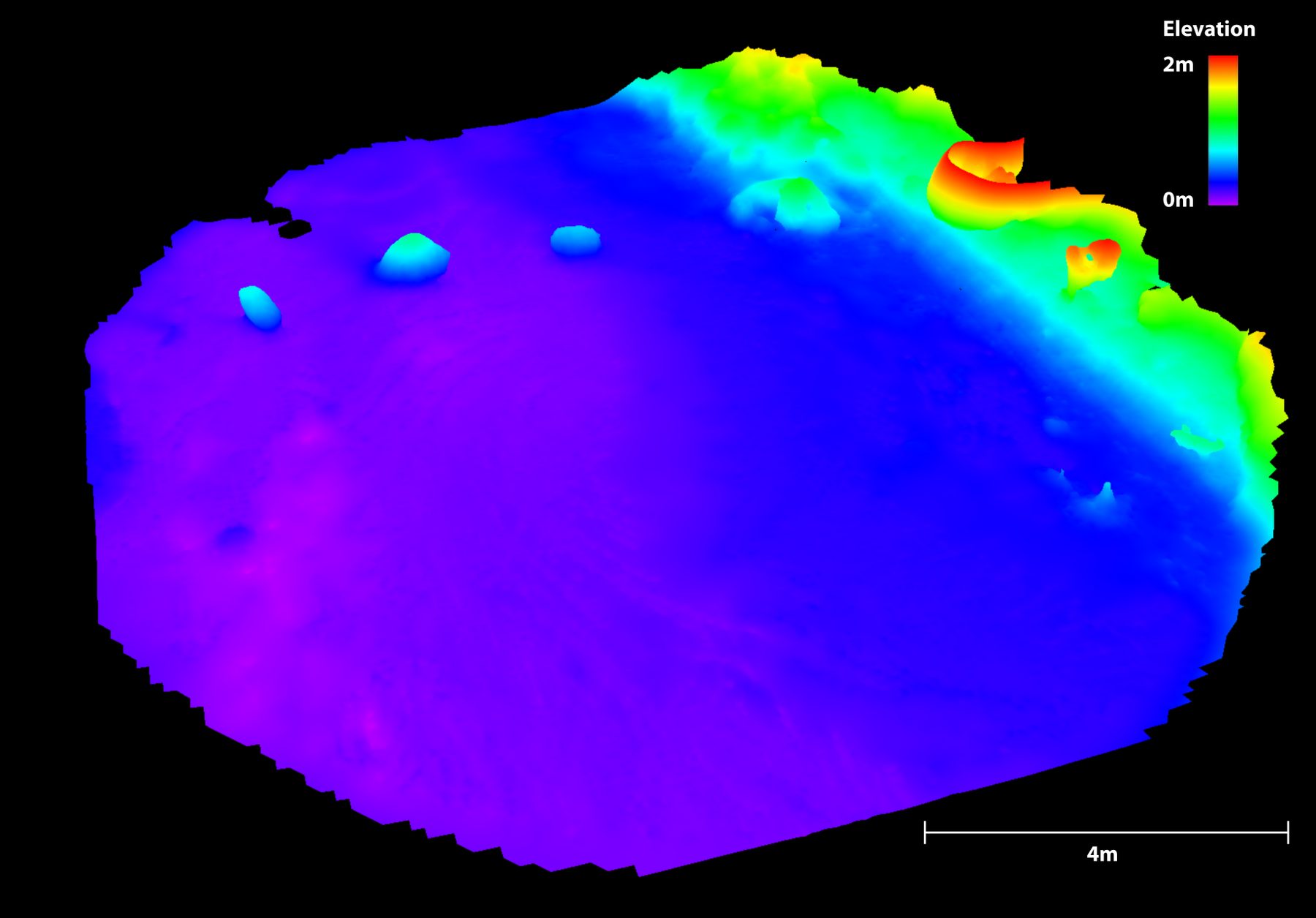

Paper Fig. S6. One mesh patch as the operators saw it during the quarry mission, coloured by height. The rocks are clearly recognizable even at 150 mm resolution, which was enough to pick targets.
Real run. The mesh map at mission control grows patch by patch as the robots explore; colour is height, and the cyan blobs are boulders. Shown at 4× speed. Footage: Robotic Systems Lab, ETH Zurich (the paper’s Movie 1).

Boulders flagged automatically

A Mask R-CNN network (a standard neural network that outlines objects in images), fine-tuned on a few hundred images the team collected at the first SRC field trial in dark, lunar-like conditions, runs at mission control on navigation and zoom-camera images. It outlines each boulder with a box, mask and confidence, which saved the scientists a lot of looking.

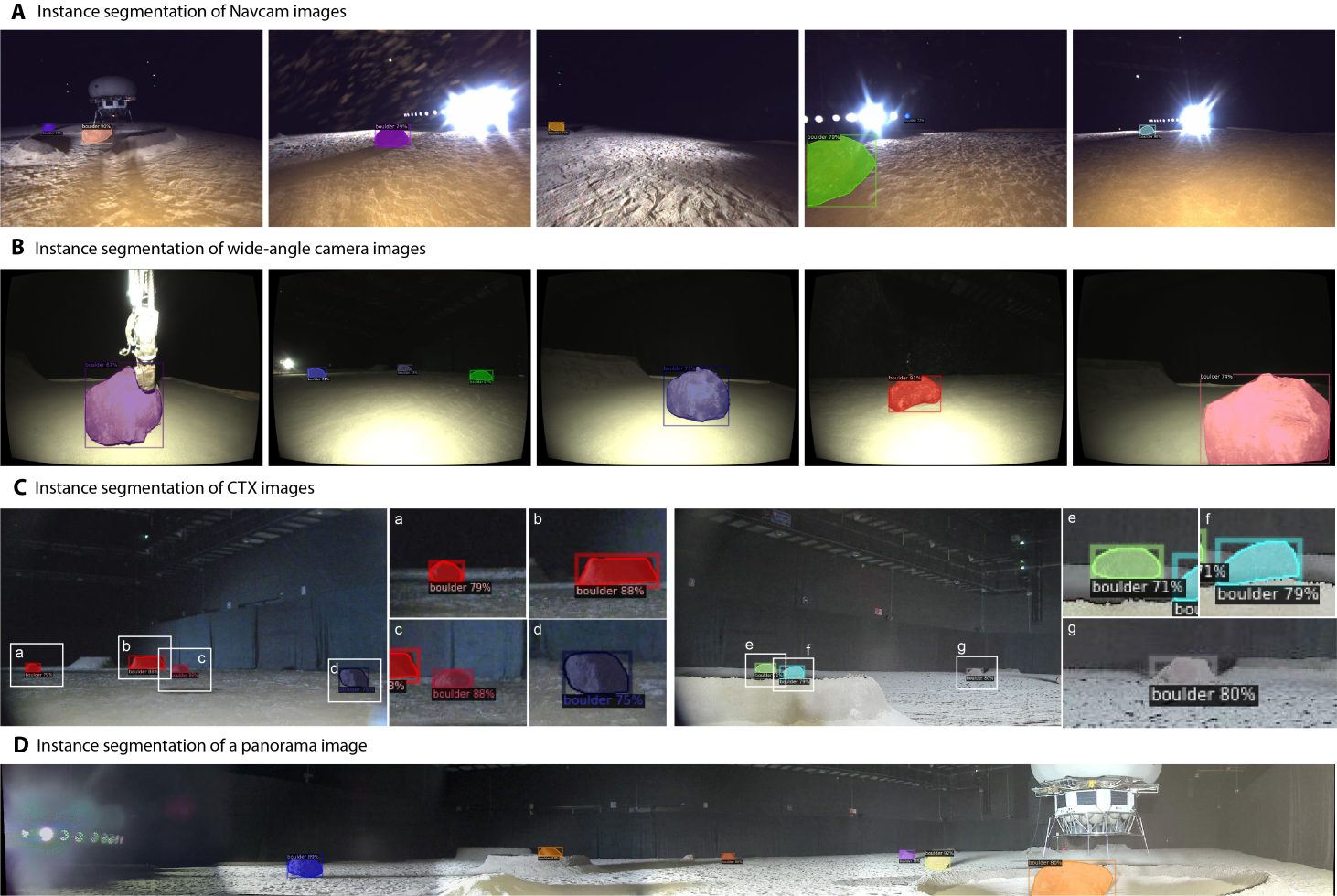

Paper Fig. S7. Boulder segmentation on three different cameras and on a panorama, under harsh, low-angle light.

Goals, not joysticks

Operators send high-level goals: a 2-D navigation goal, a 3-D point to image, or a 6-D instrument pose. A behavior tree (a flowchart of steps, with fallbacks for when a step fails) on each robot runs the task to the end, so each task costs one operator interaction. The trees share subtrees across robots (navigation, inspection, measurement); the Scientist’s is the largest, with 76 leaf nodes. A sampling-based local planner works on the elevation map, modelling the robot as foot reachability volumes plus a torso collision volume rather than labelling terrain as good or bad.

Animated (illustrative). With a 5 s round trip, each joystick-style correction waits for feedback; a single goal lets the robot keep going on its own.
Real run. At mission control, an operator marks targets of interest on the mesh map, with the segmented camera images alongside, and sends the robots high-level navigation and measurement tasks. Footage: Robotic Systems Lab, ETH Zurich (the paper’s Movie 1).

Networking: Rajant mesh radios at 5.8 GHz, one ROS master per robot and station, and Nimbro Network between them over UDP, because TCP handshakes stall with a 5 s delay. Data products were kept small so that a single lost packet doesn’t ruin a whole image or map. Incoming traffic at mission control stayed below 3.5 MB/s (Fig. S8).

Scene 5

Walking with an arm

In short: a heavy arm on its back pushes a walking robot around; training the walking controller with the arm included made it walk more naturally and use 15 % less power.

All three robots walk with a reinforcement-learning policy (a neural-network controller trained by trial and error in simulation) from the perceptive-locomotion pipeline of Miki et al. (2022). It is trained in two stages in simulation: a teacher that sees privileged ground truth, then a student that copies the teacher from noisy, realistic sensing. The Scout uses that controller unchanged.

The Hybrid and the Scientist are different. They carry heavy payloads, and the Scientist’s arm moves while it walks and pushes the base around. The old controller did not know about any of this and compensated by walking with a low body, which needs large knee torques and wastes energy. The new policy changes the training in three ways:

  1. Put the arm in the simulation and in the observation. The arm is simulated with its real mass and moves to random targets under its own PD controller; the policy (which only commands the legs) observes all 18 joints (12 leg + 6 arm), with position and velocity histories. This replaces an earlier approach that fed in a predicted wrench from the arm’s MPC.
  2. Randomize payload mass and tell the teacher. The extra mass is drawn from U(−2, 7) kg and given to the teacher as privileged information.
  3. Penalize torque more in the reward, to favour efficient gaits.
ck+1 = ckd,  d = 0.98, c0 = 0.07  // curriculum factor, updated every training episode
marmsim = marm · ck,   mpayload = U(−2.0, 7.0) · ck  // arm and payload get heavier
qarminit, qarmtarget = qarmnominal + 2.2 · N(0, ck)  // arm poses spread wider
Animated. The curriculum starts with a nearly weightless, barely moving arm and ramps up to the full load within a few hundred episodes, which kept training stable.
Locomotion power (standby 175 W removed)BaselineThis paper
Whole mock mission (walk 3.8 m, stop 8 s, repeat)475 W403 W (−15 %)
Walking segments only (40 per controller)≈ 808 W≈ 749 W (−7 %)

What this means: the gain is largest when standing and walking are mixed, as in a real measurement mission; even while walking, the new policy uses noticeably less power (Mann–Whitney U test, P < 0.001).

Note: the supplementary text lists the walking-segment means as “808 W and 749 W using our controller and the baseline, respectively”, but Fig. S9 and the surrounding text show the new controller is the lower one. The table follows the figure.

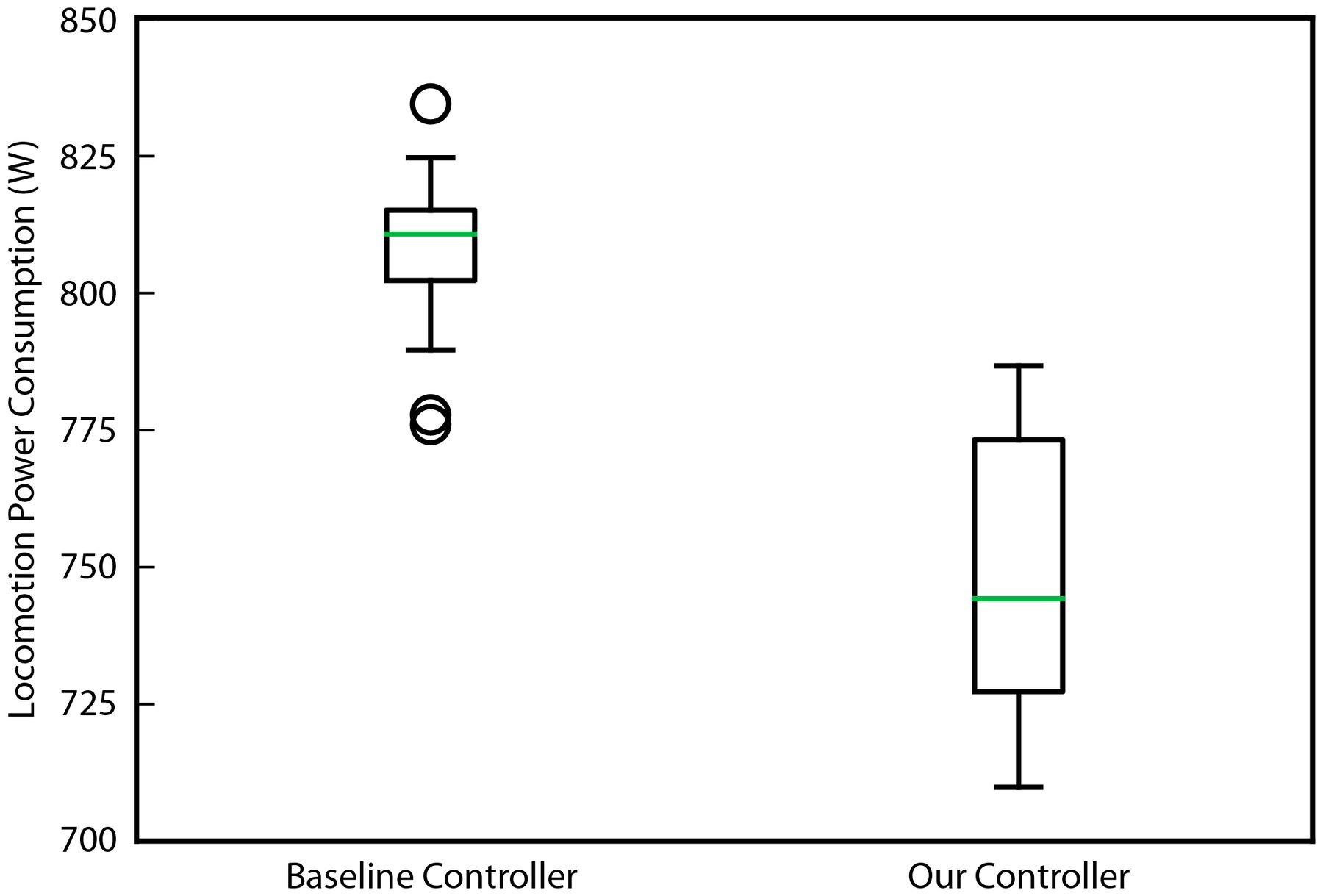

Paper Fig. S9. Power during the walking segments of the mock mission, 40 samples each. The new controller’s whole box sits below the baseline’s.

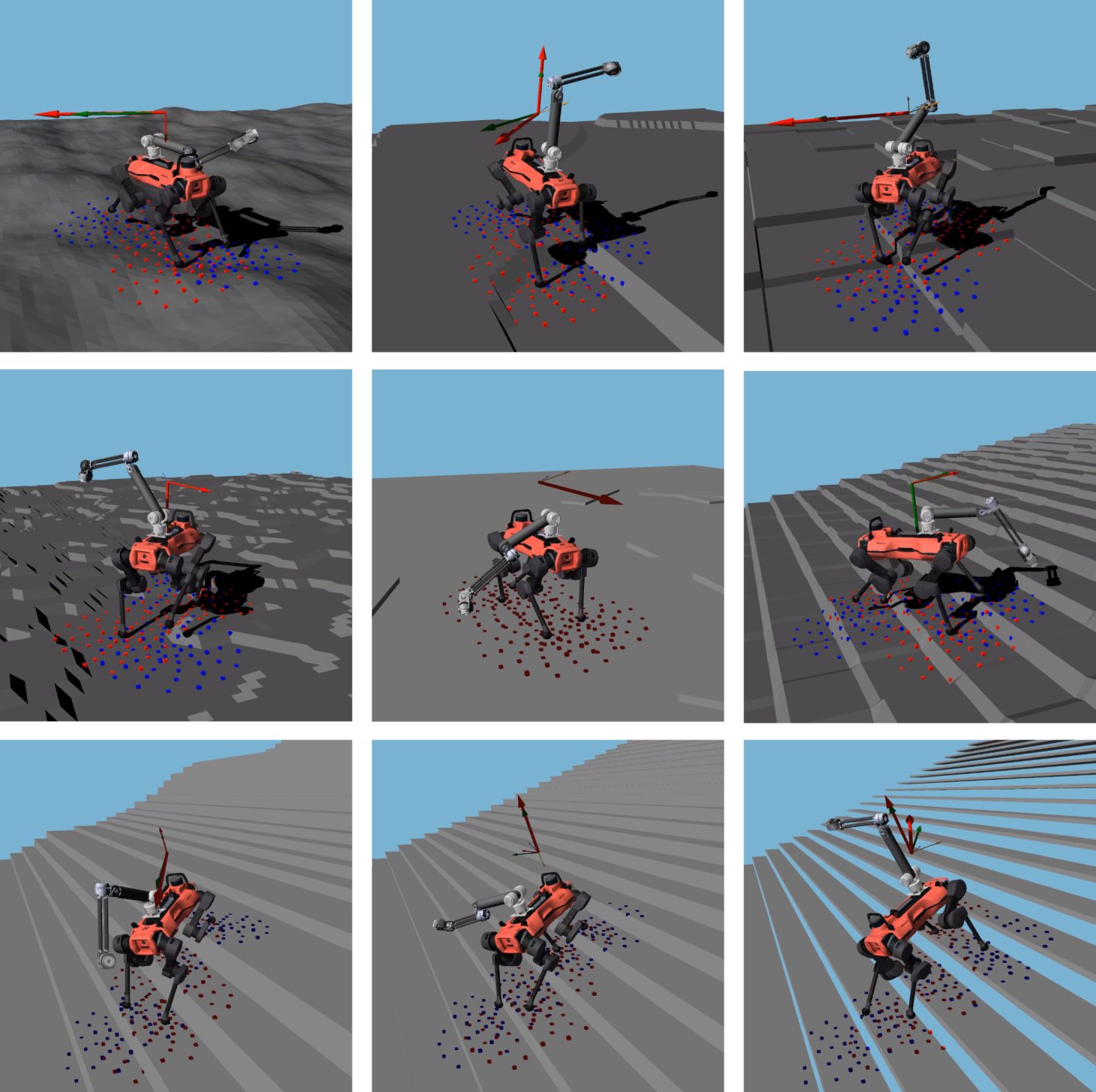

Paper Fig. S10. The training world: many simulated Scientists with randomly posed arms on terrain whose slopes and steps get harder through an adaptive curriculum.

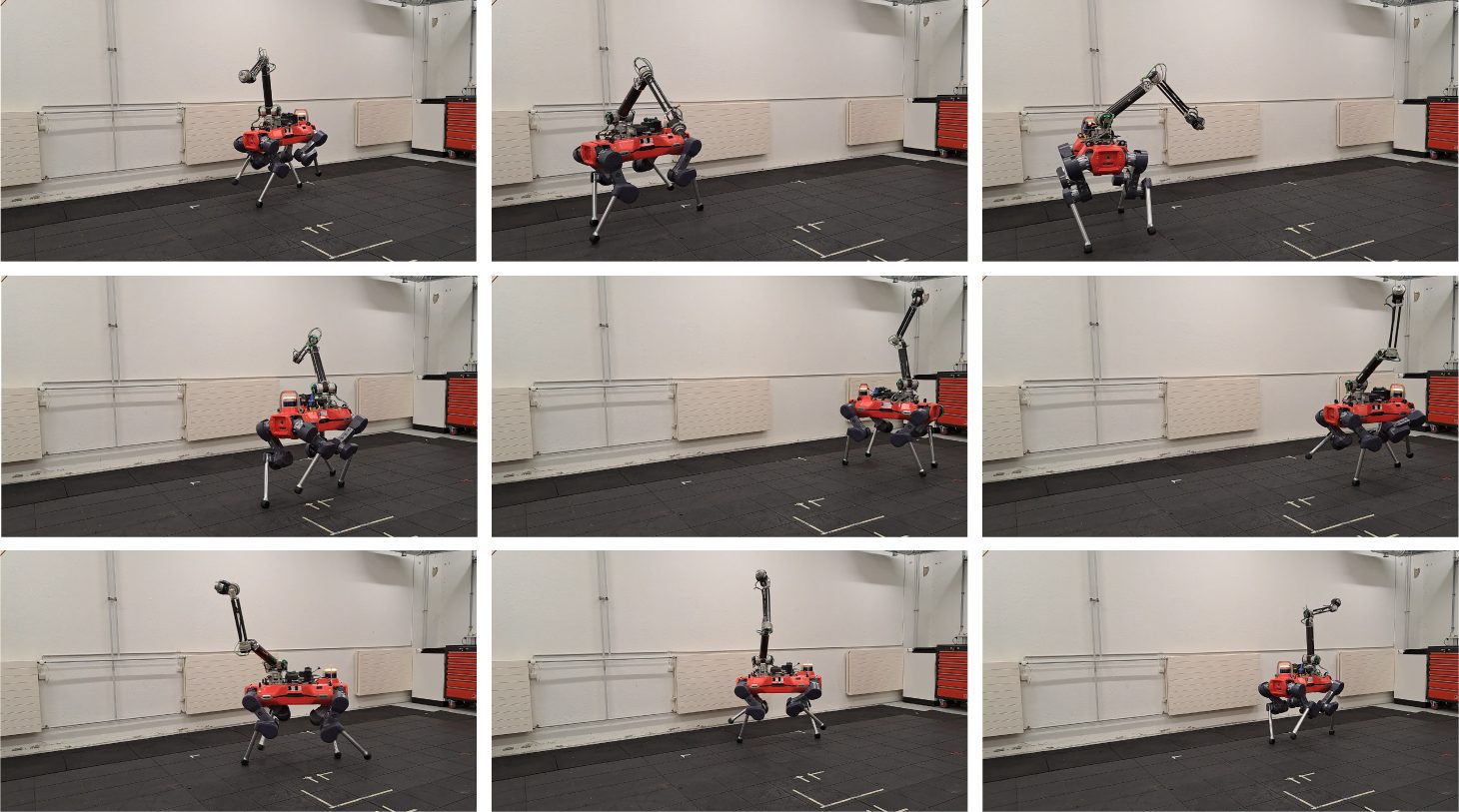

Paper Fig. S3. On the real robot: the Scientist keeps a steady gait while the arm swings to random set points.
Scene 6

In-situ science with one click

In short: a scientist clicks on a rock once; the robot walks up, aims a mineral-reading laser, and presses a microscope gently against the rock on its own.

Once a target is chosen, the Scientist does the close-up work by itself:

  1. Pick. Near the target, the operator clicks the spot in the Realsense grey-scale infrared stream (it works in bad light). A 6-DoF interactive marker appears and can be adjusted. The operator chooses MIRA, MICRO or both.
  2. Approach. The robot walks up and parks its base 1 m from the target.
  3. MIRA. The arm points the Raman laser at the target. A control loop (after Abi-Farraj et al.) drives the alignment error below 0.01 m at the ideal stand-off of 0.7 m. MIRA auto-focuses, measures, and matches the spectrum against a library of 355 reference spectra of lunar-relevant minerals (oxides such as ilmenite and rutile, olivine, pyroxenes, feldspars, regolith simulant).
  4. MICRO, stage 1. The arm moves MICRO to 100 mm in front of the target pose.
  5. MICRO, stage 2. A PID loop moves it along its axis using the time-of-flight sensor until the reading is 5 mm, which gently squeezes the foam ring onto the rock. This works even if the clicked pose was not exactly on the surface. MICRO then focuses and records images under white, red, green, blue, UV (395 nm) and near-infrared (940 nm) light.
Animated. The two-stage approach: a fast pose move, then a slow ToF-guided press to 5 mm, then six light bands.
Real run. MICRO pressed against a boulder at night: it lights the rock in one band after another, and the inset shows each microscope image. Footage: Robotic Systems Lab, ETH Zurich (the paper’s Movie 1).

If anything goes wrong, the arm returns to its default pose and the robot tells the operator. The arm itself is controlled by model-predictive control (MPC: it re-plans the arm’s motion a short time ahead, many times a second; OCS2 library) that treats the robot as a floating-base manipulator; while walking it holds the arm in a low, compact pose, and during measurements it tracks the tool pose. Arm and legs are controlled separately: MPC for the arm, the RL policy for the legs.

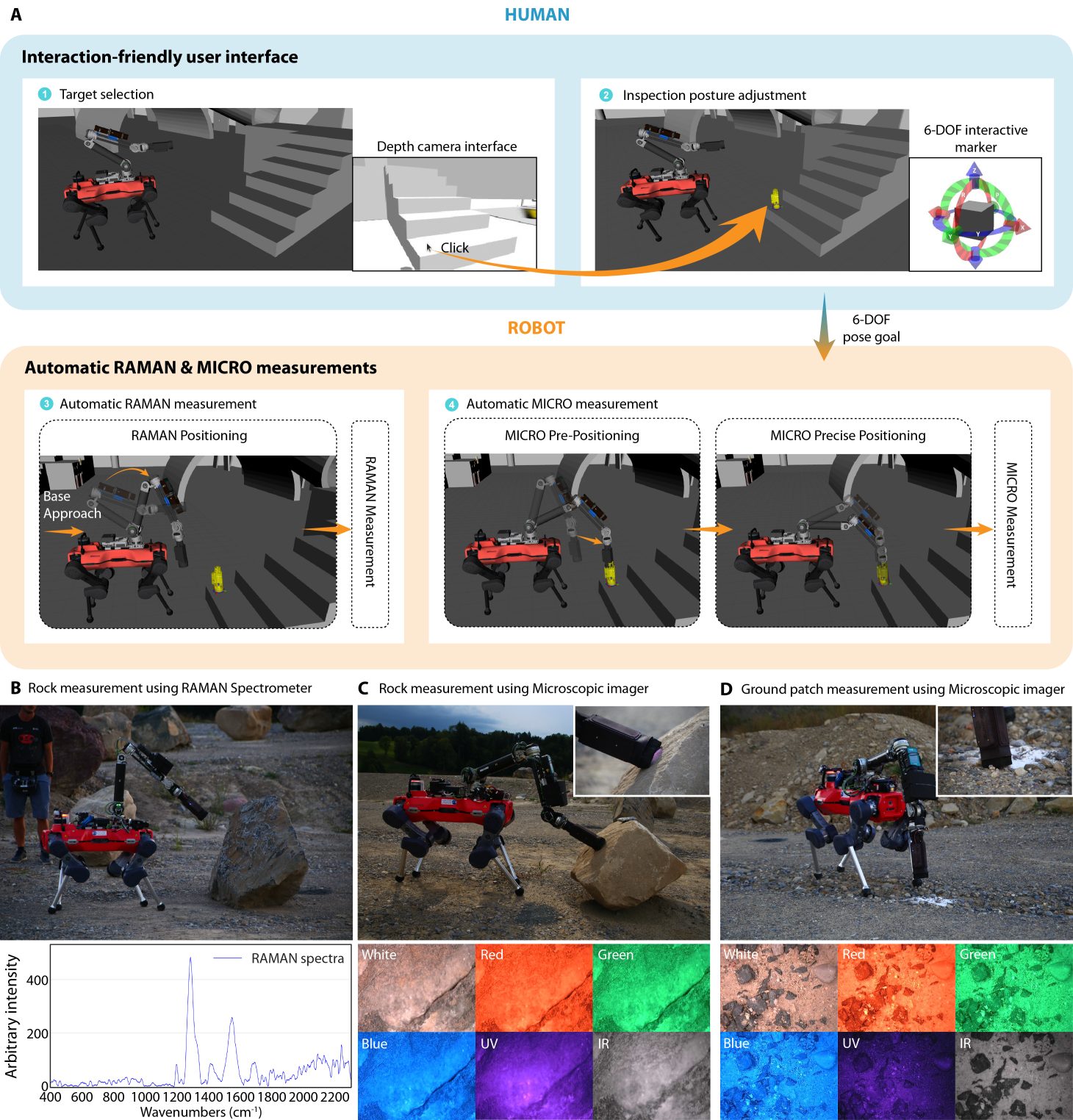

Paper Fig. 7. Top: the human part (click, adjust marker) and the robot part (Raman positioning, MICRO pre-positioning and precise positioning). Bottom: real measurements on a boulder with MIRA and MICRO, and on a ground patch, with the six-band microscope images.

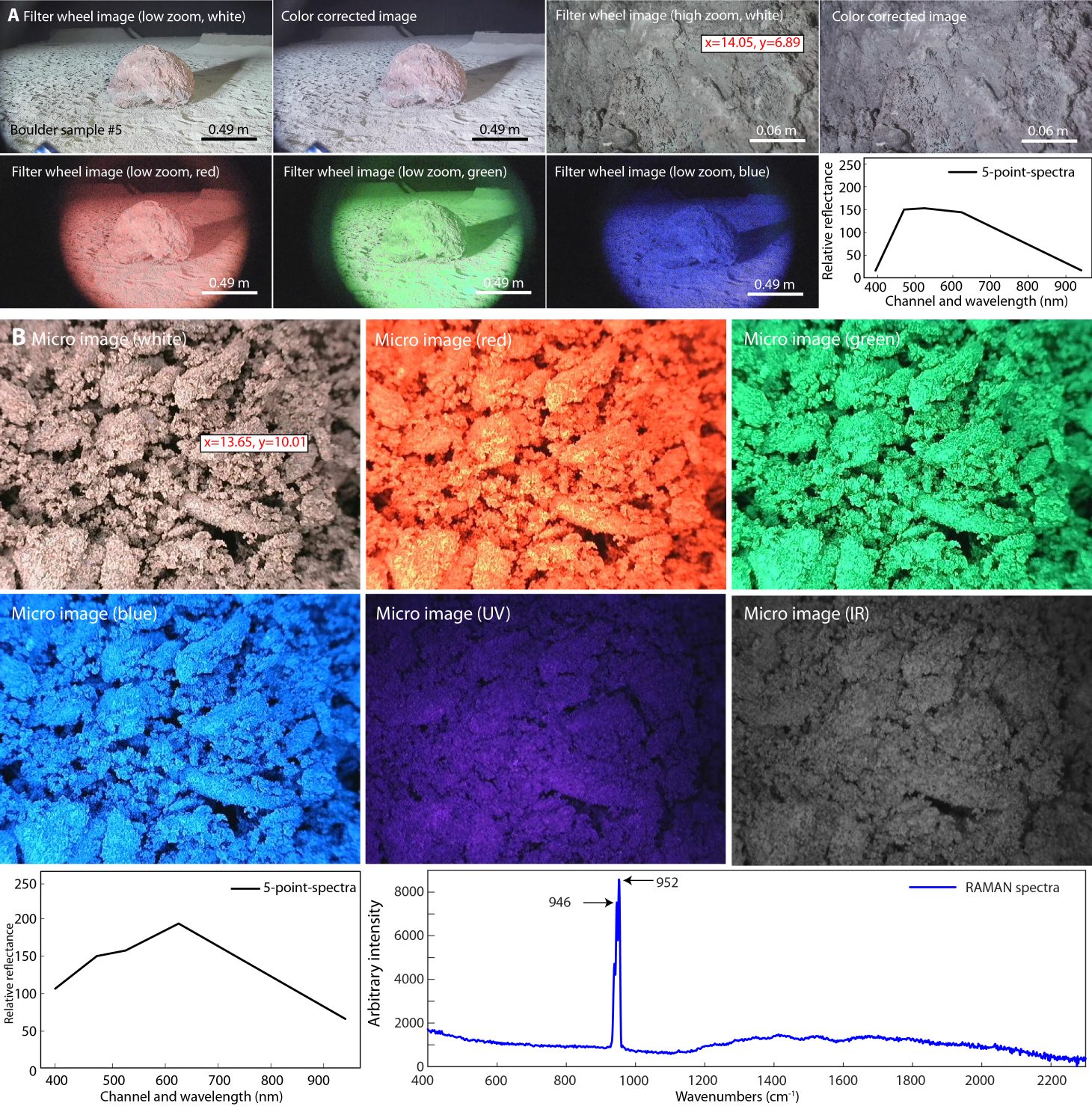

Paper Fig. 8. What the scientists got at the SRC. Top: filter-wheel images of boulder 5 (a vesicular basalt) at two zoom levels, colour-corrected with the robot’s calibration card, and a five-point spectrum. Bottom: MICRO images of a candidate resource area and its MIRA spectrum, with a strong peak at 952 cm⁻¹.
Scene 7

Redundancy: tasks move when things break

In short: the robots’ instruments overlap on purpose, so a teammate can take over when a robot or instrument breaks. At the quarry, that is what saved the mission.

Each robot has a main role, but the payloads overlap on purpose, and any mission-control station can command any robot. So when a robot or an instrument fails, the operators reassign its tasks. Table S1 lists what is still possible for every combination of offline robots:

Robots offlineCTXFWTHMIRAMICRO
none✓✓✓✓✓
Scout✓✗✓✓✓
Hybrid✓✓✗✓✓
Scientist✓✓✓◦✗
Scout + Hybrid✗✗✗✓✓
Scout + Scientist✓✗✓◦✗
Hybrid + Scientist✓✓✗✗✗
all three✗✗✗✗✗

What this means: losing any single robot still leaves four of the five measurement types (◦ = limited quality: the Hybrid’s base-mounted MIRA can’t be pointed as precisely as the arm’s). A single robot carrying everything would lose all five.

This was tested for real at the quarry. The Scout’s CTX-FW and the Scientist’s MIRA malfunctioned. The team sent the Hybrid in early to take over the Scout’s camera work and the Scientist’s Raman measurements, and brought in the Scientist once enough targets were queued for its microscope. Every mission goal was met except the filter-wheel images: six of seven.

Animated. The quarry mission timeline from Fig. 4E: the Hybrid starts early because two payloads are down.

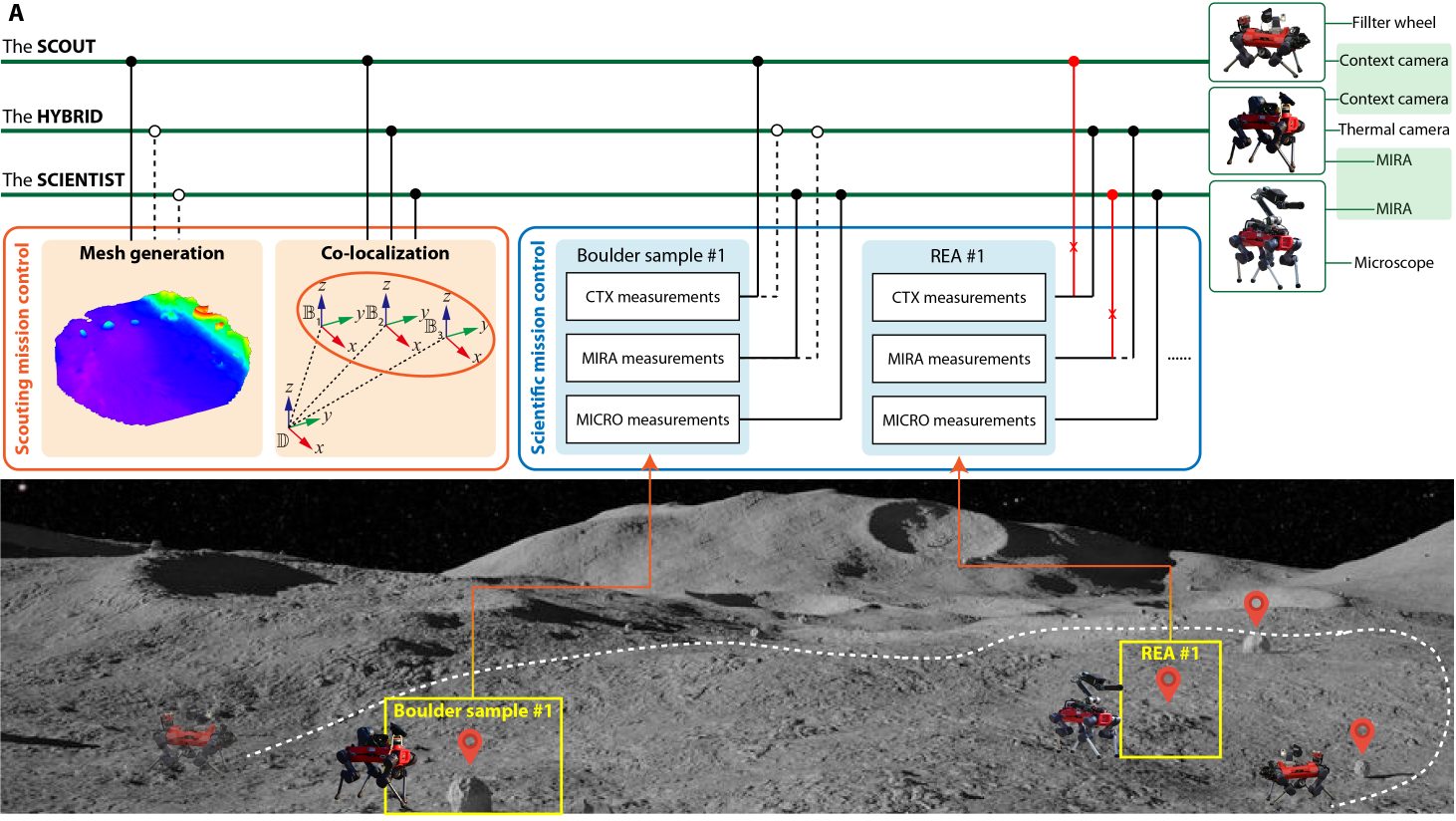

Paper Fig. 2. Scouting tasks (mesh generation, co-localization) and science tasks (per boulder or resource area) connect to the robots that can do them. Solid lines are the chosen allocation, dashed ones the alternatives, red ones broken links that force a reallocation.

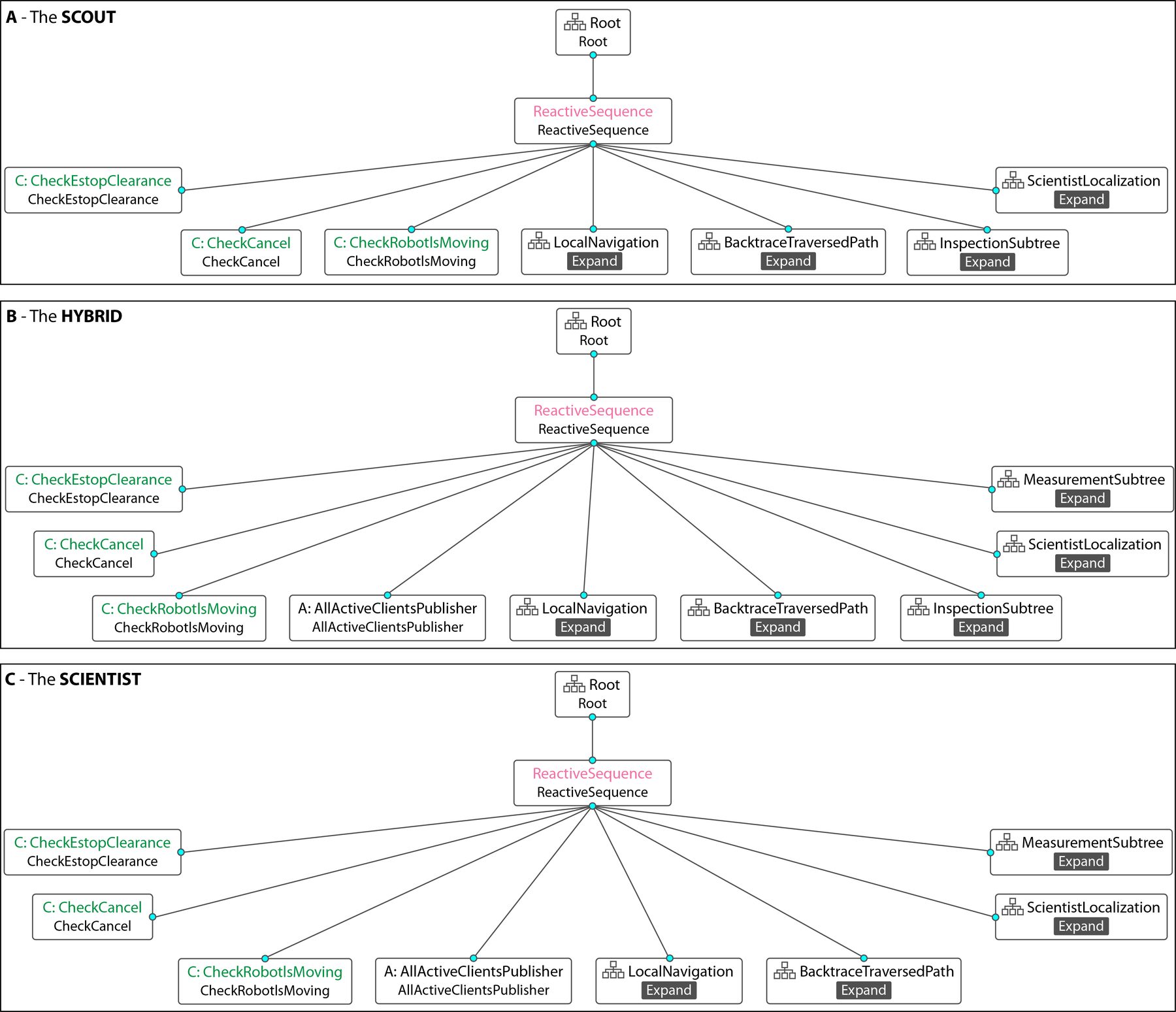

Paper Fig. S12. The behavior trees of the three robots. Shared subtrees are what make it cheap to hand a task to another robot.
Scene 8

Two full analog missions

In short: two full practice missions under Moon-like conditions: most of an unknown site mapped, targets found and measured within an hour or two, and no robot ever fell.

Both end-to-end missions had five people in the control room: at each of two stations, one robot operator and one planetary scientist, plus a supervisor. One station ran the Scout and the Hybrid, the other the Scientist. Only one station commanded a robot at a time, so commands never conflicted.

Space Resources Challenge, Luxembourg (Sept 2022)

The ESA/ESRIC challenge asked teams to prospect an unknown 1800 m² lunar analog: coarse basalt with fine dust, a powerful lamp at a low angle in one corner (south-pole lighting), a 5 s round trip, one scheduled and one random loss of signal, and five hours for the mission plus the report. The Scout went first. After the first loss of signal the team had enough targets to send the Scientist to the candidate resource areas; the Hybrid joined at 76 min for boulders. For 20 minutes all three robots worked at once.

SRC resultValue
Area mapped by the Scout95 % in 96 min (most targets found after 50 min)
Boulders located7 of 8
Candidate resource areas (REAs)18 found, 6 measured with MICRO + MIRA
Boulders prioritized5, all imaged with CTX-FW; 3 with MIRA
Distance walked on granular terrain358 m
Scientist measurement rateMICRO + MIRA every 3–5 min

What this means: because the Scout had already mapped the area, the Scientist spent its time measuring instead of exploring; that division of labour is the main argument for a specialized team.

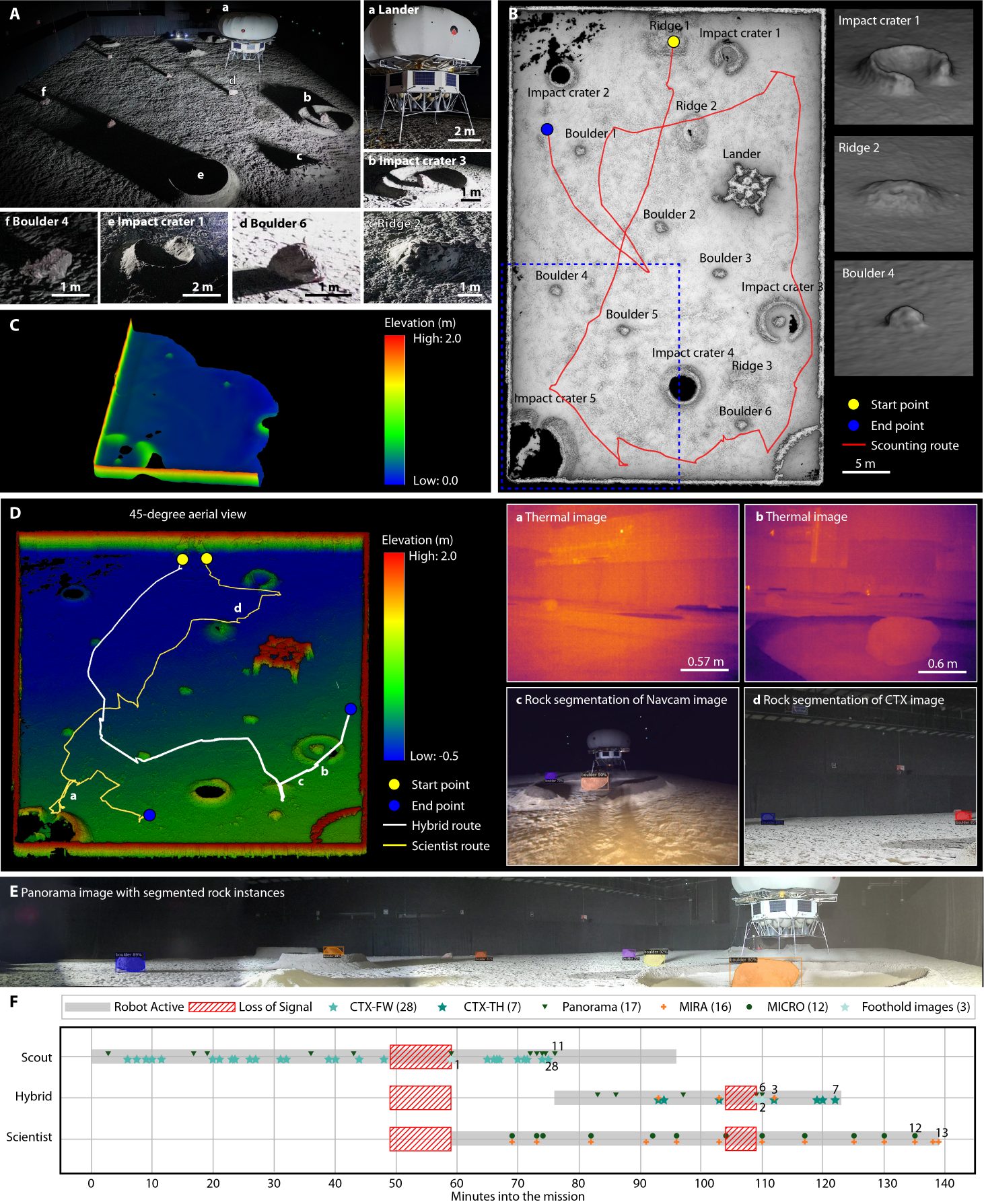

Paper Fig. 3. The SRC arena and what the team produced: the post-mission shaded map with the Scout’s route (B), an online mesh used for picking targets (C), a height map with the Hybrid’s and Scientist’s routes (D), thermal and segmented images, a panorama, and the mission timeline with both losses of signal (F).

Quarry, Neuheim, Switzerland

An active gravel quarry with poorly sorted sediment, metre-sized boulders and a headwall up to about 20°. The test ran at night, lit by a single 180 W LED at about 87° to mimic south-pole shadows, again with a 5 s delay. The team scattered patches of basalt, ilmenite, rutile and titanium dioxide as mock resource areas. Goals: map at least 1000 m², find at least five targets, and measure at least five targets with each instrument.

Quarry resultValue
Mission time68 min
Area mapped1375 m² (goal ≥ 1000)
Targets identified12 (10 boulders, 2 patches)
CTX + thermal images16, of 7 rocks
MIRA spectra / MICRO images6 rocks / 3 rocks + 2 patches
Goals met6 of 7 (no filter-wheel images)

What this means: with two instruments broken, redundancy turned what would have been a failed single-robot mission into a nearly complete one.

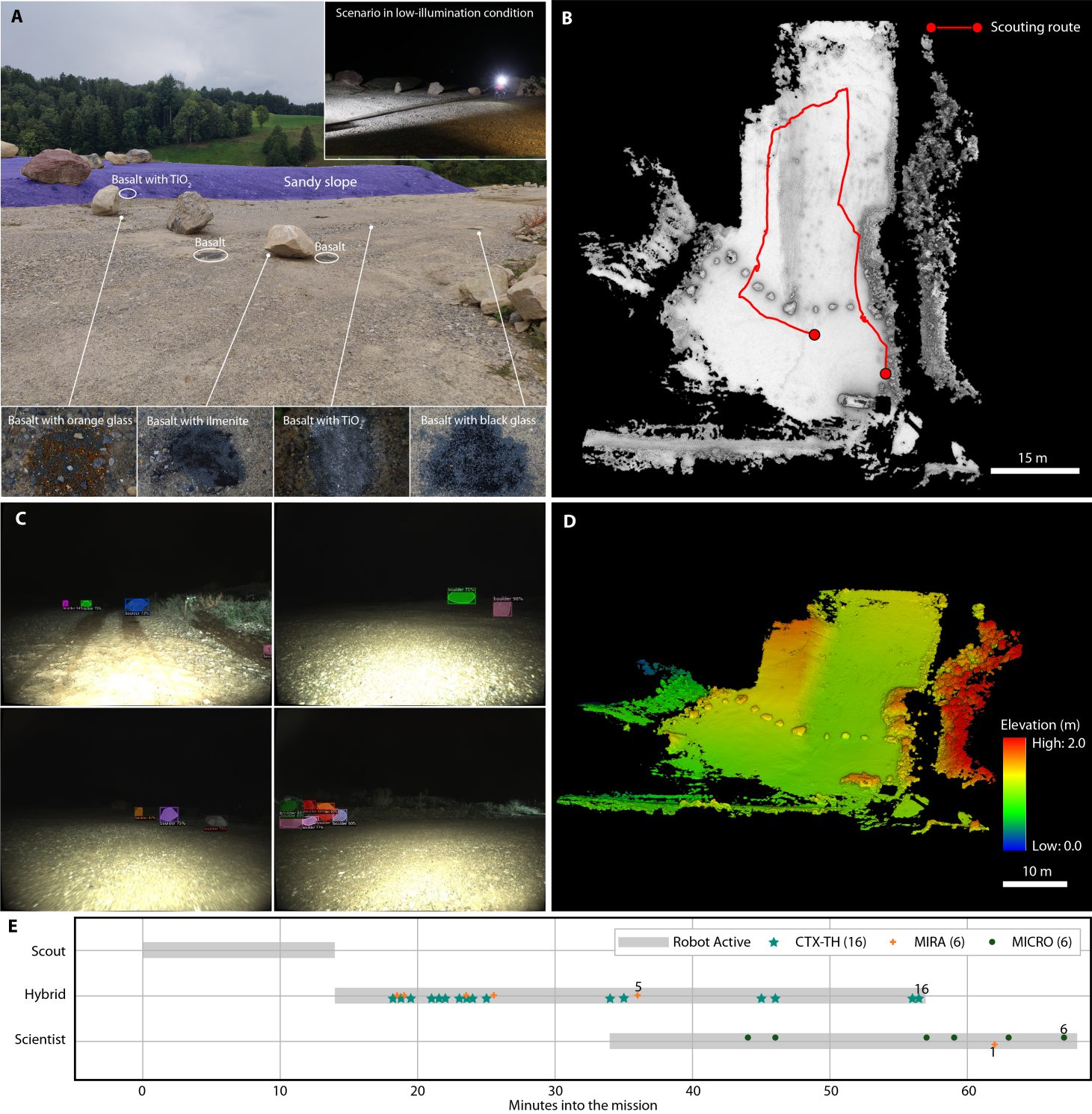

Paper Fig. 4. The quarry: the yard with mock resource patches (A), the Scout’s route on the dense map (B), boulder segmentation in the dark (C), the elevation map with the headwall at top left (D) and the timeline (E).

When the link drops

During a loss of signal each robot finishes its current task, then runs a fixed routine. The Scout and Hybrid take a panorama, photograph their own footprints (soil mechanics), photograph each other and the Scientist (hardware check), and the Scout photographs the colour card for later colour correction. Everything is sent once the link is back.

Animated. The loss-of-signal routine, step by step.

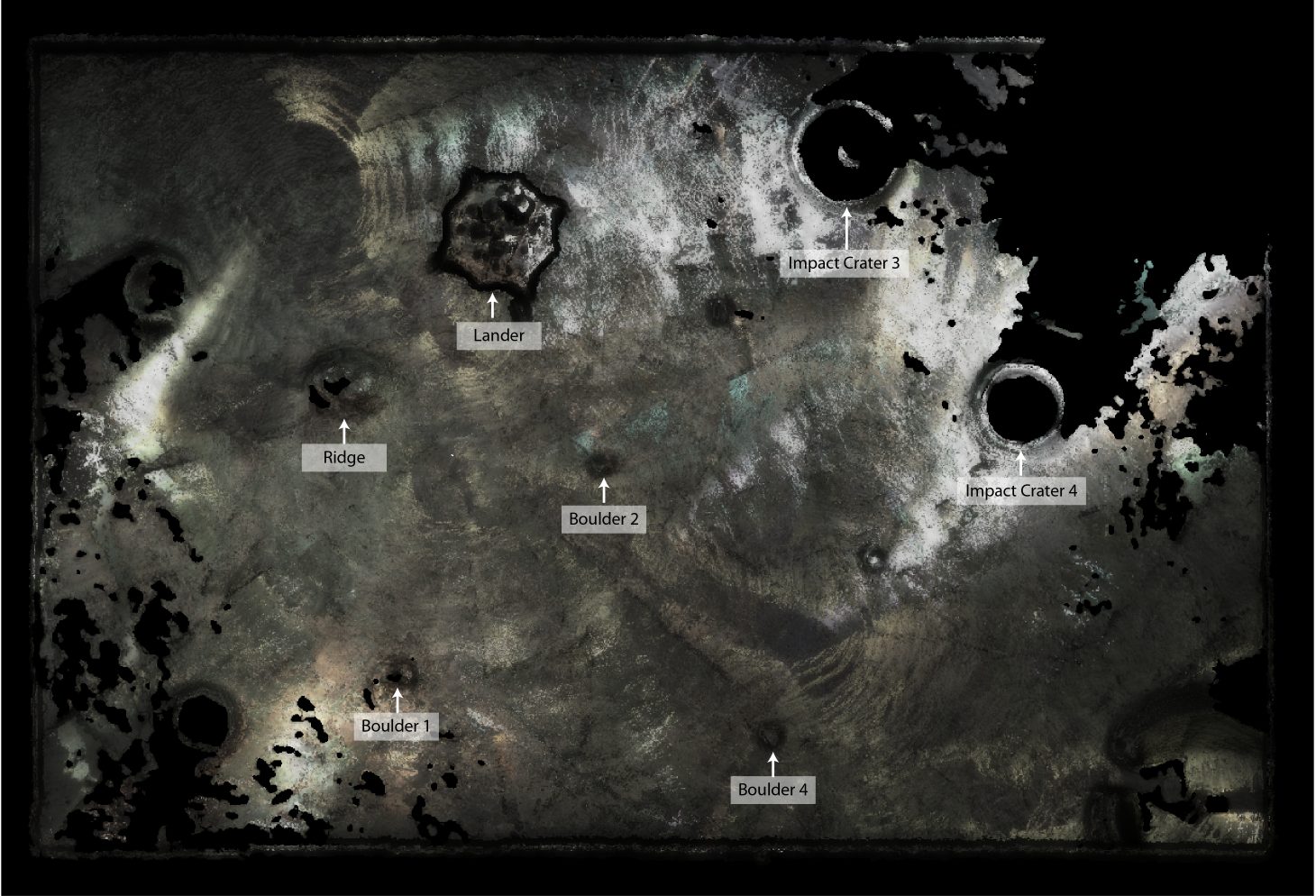

Paper Fig. S4. The full SRC arena as a colour mesh, built after the mission from the dense onboard map and the navigation-camera colours.
Last

Limits and what comes next

In short: it worked in practice missions on Earth, but people still make every decision about what to study next, and the hardware is not ready for space yet.

  • Instruments. The payload mix was set by budget and time. Other SRC teams found resource areas better with X-ray fluorescence (XRF); adding XRF or LIBS, or returning samples to a lander, would improve the science.
  • The 5 s delay hurts. TCP is unusable, UDP loses packets, and every operator interaction costs mission time. Better protocols and compression would help.
  • Humans are the bottleneck. The robots run single tasks alone, but people still choose and assign every task. Automatic target selection and task allocation would need machines to interpret images and spectra, which is still open. More robot-to-robot communication (shared maps, task hand-offs without mission control) is also missing.
  • More autonomy for Mars. Longer delays need multi-goal planning, automatic target prioritization and skill-aware task allocation, which would also let the team grow without more operators.
  • More variety. The robots differ in science skills, not in mobility. Drones for fast mapping and wheeled robots for easy, long-range targets could complement the legged ones.
  • Space hardware. Power and thermal design for legged robots look feasible, but there are no space-grade processors fast enough for this mapping, navigation and locomotion stack, and the LiDARs are not space-qualified (solid-state LiDARs may change that).
